ALED-6032
LED AREA LIGHT
This slick and modern luminaire has been designed to to be powered efficiently.
With a beautiful slimline design along with one of the highest lumen performance on the market,this versatile fixture can be used as a flood light or an area light. Including a multitude of mouting options, surge protection devices, IOT photocell capability, and the most technologically advanced LED's on theLED AREA LIGHT
-UL and CUL listed.
-ONE-PIECE die-cast aluminum body with die-cast hinge panel for easy installation access.
-LEDs: The most technologically advanced LED chips in the market.
-UV stabilized powder coated finish
-Lens: Optional Type III, Type IV, Type V optics.
-3-pin / 5-pin / 7-pin Receptacle.
-Bi-Level Dimmable or Photocontrol optional available with adder.
-IOT Photocell capability.
-Standard 4kV Surge.
-Mounting options: Trunnion, Slip Fitter, and Pole Mount
-Optional 347V or 480V with adder.
-Finish - Bronze. Color options with adder
-Suitable for Street & Tunnel, Park, Gas Station, Parking, and Industrial Site. market, the ALED-6032 is ready to conquer the lighting landscape
| Model Number |
ALED-6032 |
| System Wattage |
200W |
250W |
290W |
| Delivered Lumens (Lms.) |
39470 lm** |
| Efficacy (Lm/W) |
136 lm/w |
| Color Rendering Index (CRI) |
70+ |
| Color Temperature (CCT) |
3000K / 4000K / 5000K |
| Input Voltage |
120~277V AC / 347-480V |

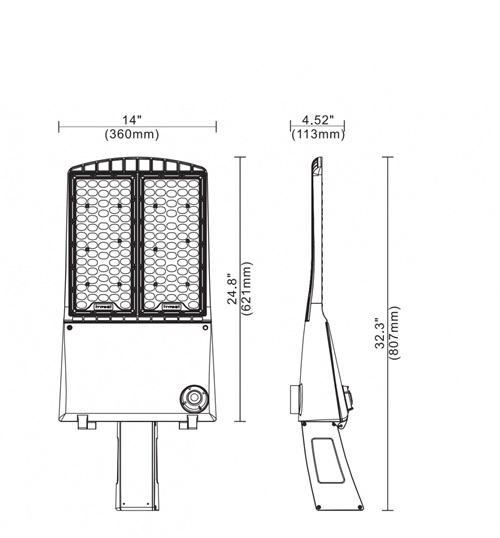

| Dimensions (Inches) |
14"x 24.8" x 4.52" (Pole Mount PM) |
| Weight (kg / lb) |
11kgs / 24.22lbs |
